Automatic transmissions are complex machines—packed with clutches, solenoids, gears, and hydraulic circuits. If you're planning to repair or rebuild one, having the right tools is as critical as having the right parts.
At Auto Matic Kings, we’ve been supplying high-quality used and rebuilt automatic transmission parts for over 20 years. In that time, we’ve seen that even experienced mechanics can run into problems when using makeshift tools or taking shortcuts. Precision, cleanliness, and correct assembly are non-negotiable when it comes to transmissions.
So whether you’re a seasoned pro or an advanced DIYer, here are the Top 5 essential tools you’ll want on your bench before diving into your next automatic transmission repair.
Why it matters:
Automatic transmissions are big and heavy—typically between 100 to 400 lbs, depending on the model. Dropping one can damage the unit and, worse, injure you. A transmission jack provides stable, adjustable support, allowing you to safely remove, lower, and reinstall the transmission with precision.
Mechanic’s insight:
Opt for a jack with tilting adjustment. This makes it far easier to align the transmission when reinstalling—especially in tight engine compartments.
Why it matters:
Automatic transmissions rely on exact torque specifications. If fasteners are overtightened, you risk damaging delicate components like valve bodies or distorting cases. If undertightened, you could cause leaks or even catastrophic failure.

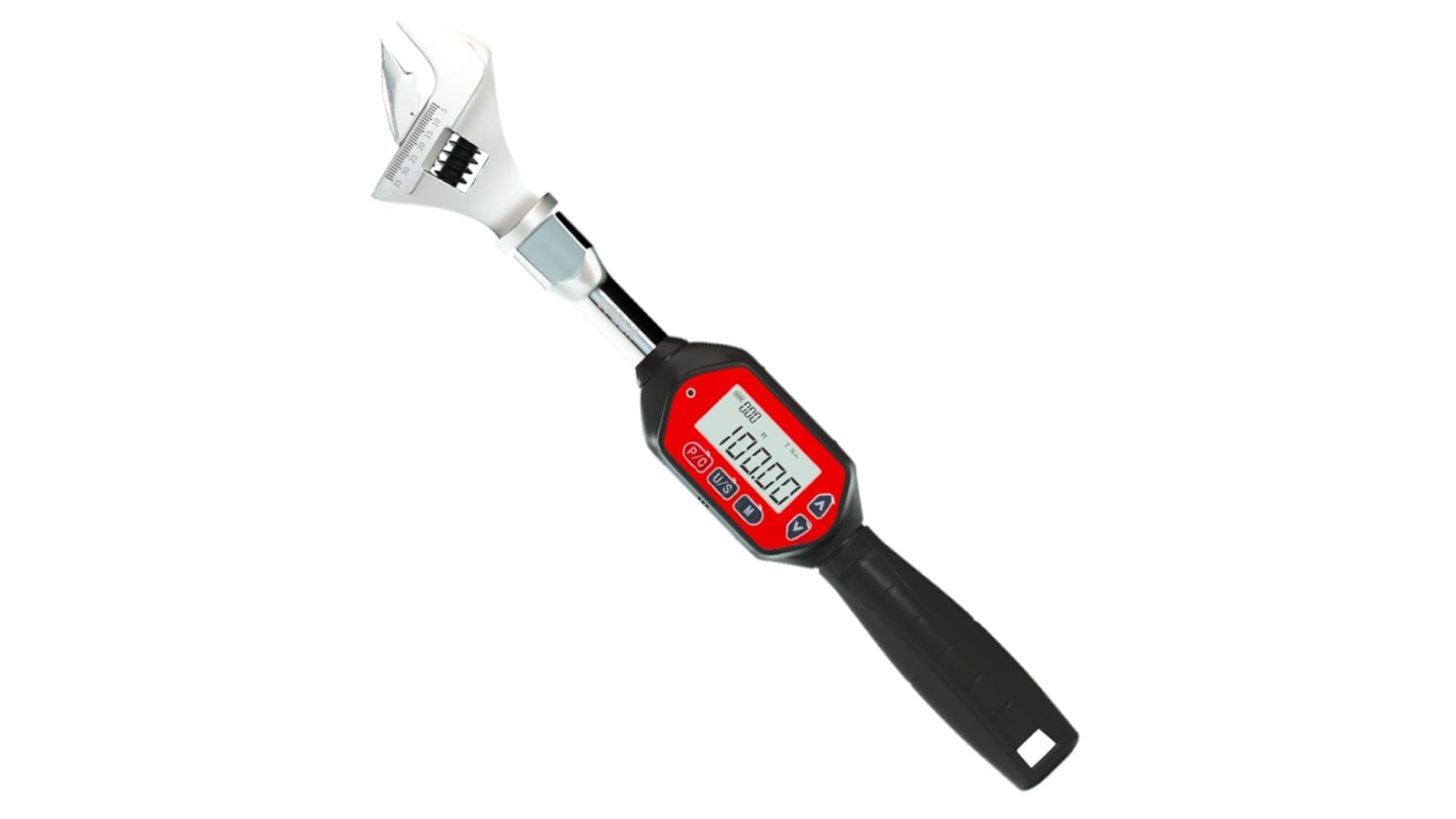

A high-quality torque wrench ensures bolts and fasteners are tightened precisely to manufacturer specs.
Mechanic’s insight:
Keep both a click-style torque wrench (for general fasteners) and an inch-pound torque wrench (for low-torque applications like valve bodies and solenoids) in your toolbox.
Why it matters:

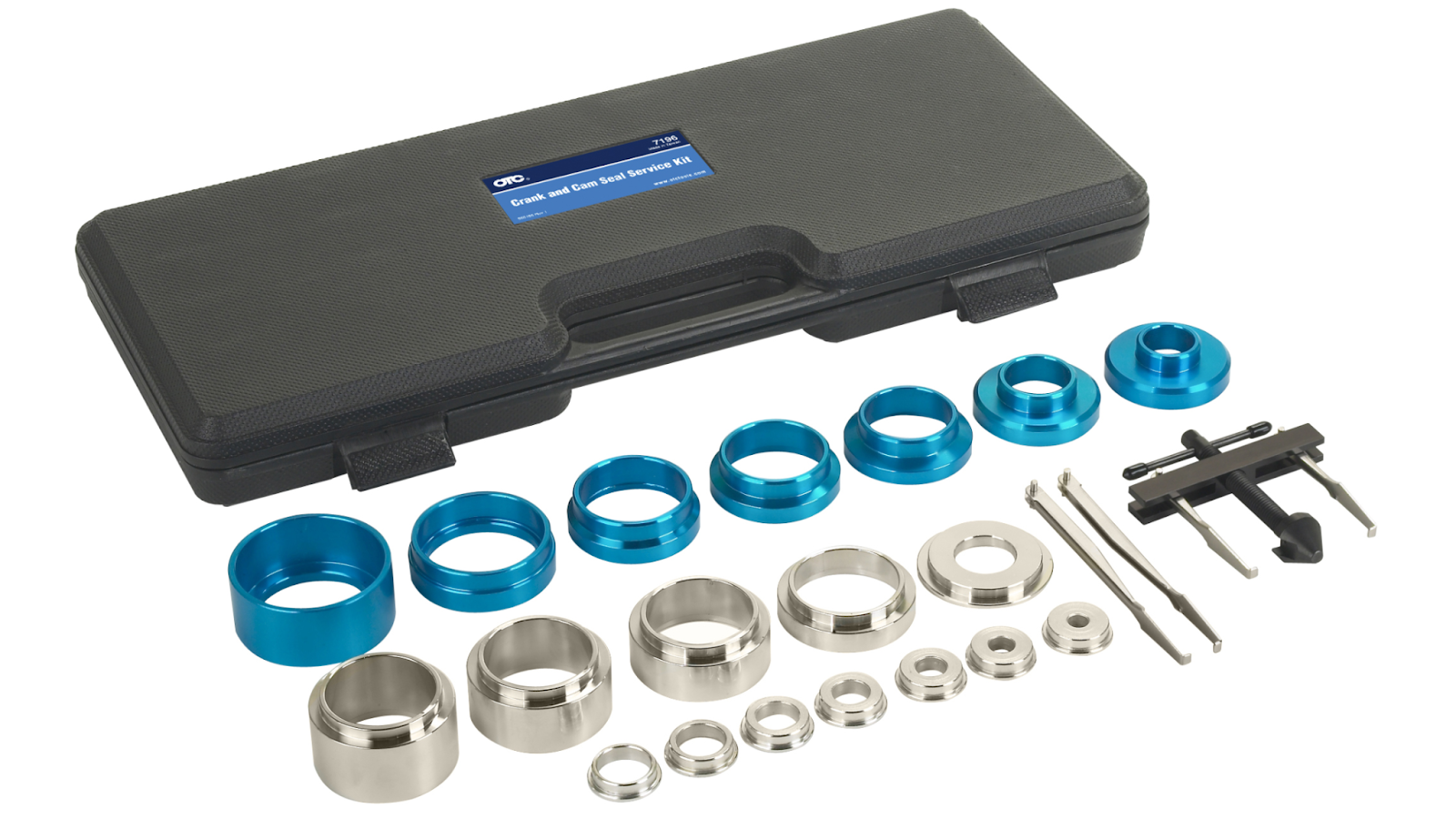

Transmission seals—input shaft, output shaft, pump seals—must be installed perfectly straight and to the correct depth. Using a hammer or socket might get the job done, but it’s an easy way to damage seals or misalign them, leading to leaks.
A seal installer kit lets you seat seals with accuracy, protecting against costly comebacks.
Mechanic’s insight:
Always apply a light coat of assembly lube or ATF to the seal before installation. Use the correct-sized installer to avoid nicking or tearing the seal lip.
Why it matters:
Proper endplay is vital to transmission longevity. Excessive endplay can lead to wear on thrust washers, clutches, and bearings. Too little endplay can cause binding and overheating.

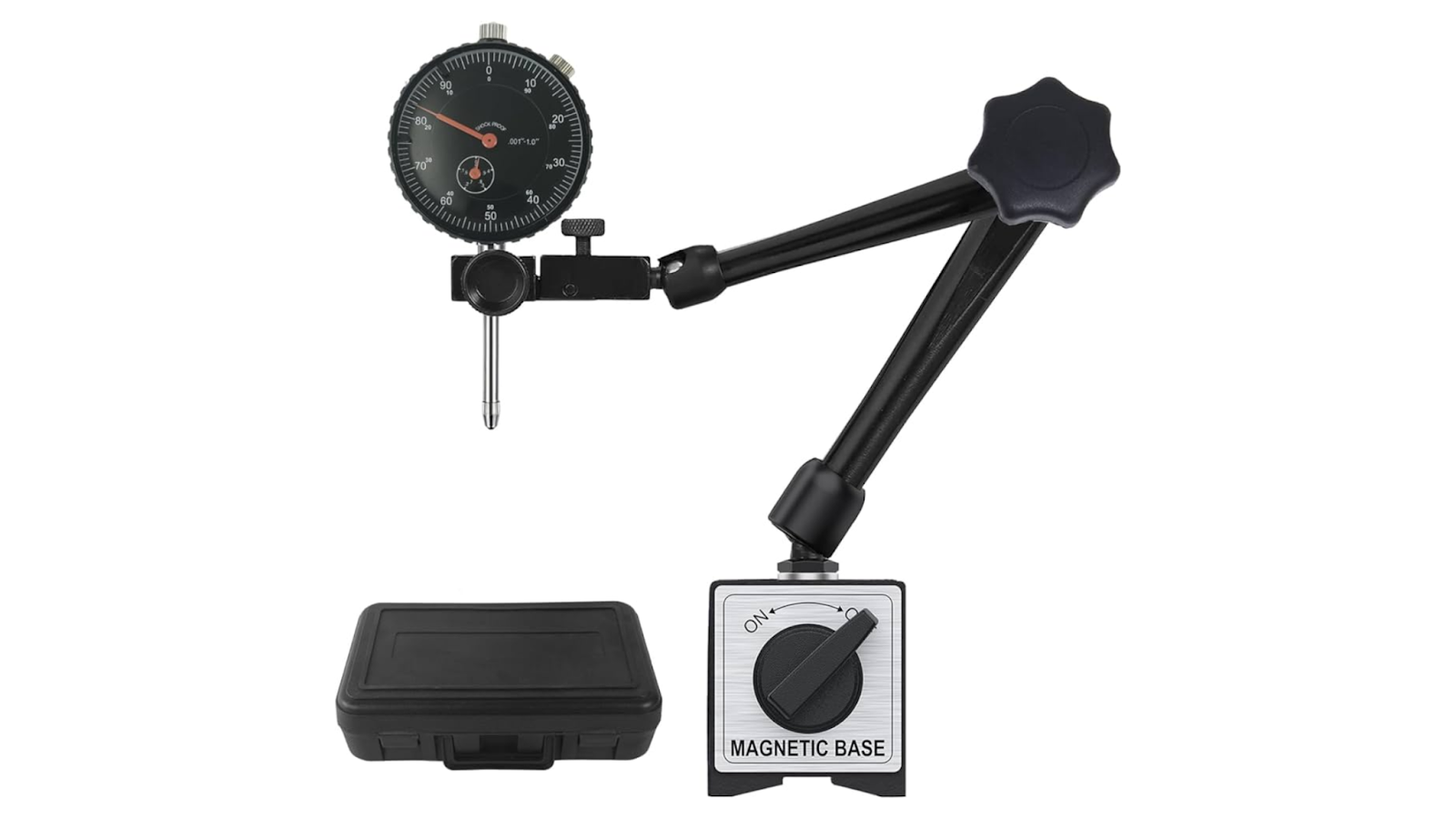

A dial indicator with a magnetic base allows you to measure shaft runout, endplay, and gear clearance to thousandths of an inch.
Mechanic’s insight:
Be sure to use your dial indicator to check not only main shaft endplay but also planetary gear clearance and clutch pack clearance during assembly.
Why it matters:
During assembly, many critical friction surfaces—clutch plates, bands, and bushings—won’t receive full lubrication until after the first few seconds of operation. Transmission assembly lube prevents metal-to-metal contact during this critical startup phase.
Mechanic’s insight:
Don’t overdo it—a thin coat on friction surfaces is plenty. Excessive lube can cause foaming or temporary clutch slippage on initial startup.
Beyond the top five essentials, there are a few more tools that every transmission pro should keep within arm’s reach. These aren’t always mandatory for every job—but when you need them, nothing else will do:
Automatic transmissions demand precision and attention to detail. Cutting corners or using the wrong tools will almost guarantee a failed rebuild. But with the right tools and high-quality used or rebuilt parts from Auto Matic Kings, you can get the job done right—saving time, money, and future headaches.
